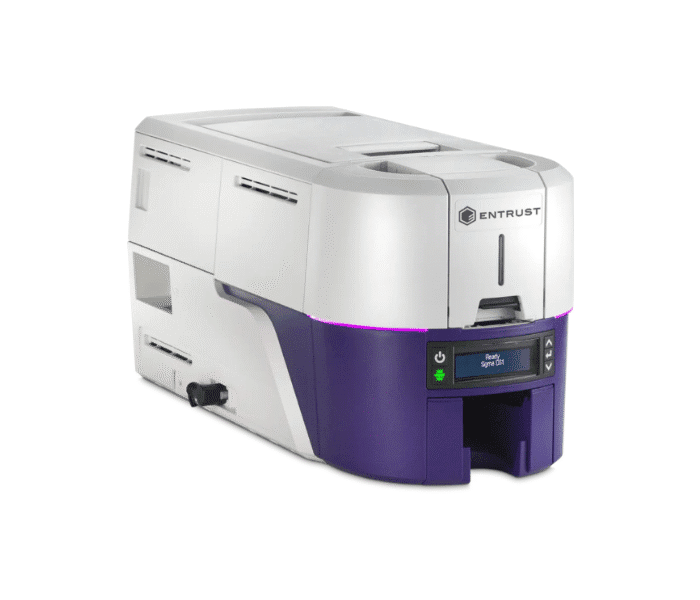

Entrust Sigma DS2
The identity issuance industry is evolving with the Sigma DS2, an advanced single-sided printer. As the global leader and innovator in identity solutions, we are reimagining systems to address modern needs, enabling the seamless issuance of the world’s most secure identities. The Sigma DS2 stands out among top-tier solutions for its exceptional security features and user-friendly design, making it a truly remarkable choice in the industry.
Description
Features
- Out of Box Experience: Reduces the complexity and frustrations of unboxing, specifically engineered to start the ultimate printing experience.
- Printer Dashboard: Monitor printer status, order supplies, check cleaning status, update firmware, or contact help, all on your mobile device.
- Issuance Flexibility: Easily issue IDs with software in the cloud or on-premises, offering unmatched flexibility.
- Unmatched Security: Ensure data safety with encryption technology, TPM Module, and Secure Boot, providing unmatched security against intruders.
- Purposeful Design: Integrates seamlessly into your physical environment with features like variable light LED ring, ensuring a purposeful design.
- Physical & Digital: Ability to issue both physical IDs (cards) and digital IDs (mobile flash passes) simultaneously, offering both physical and digital authentication options.
Specifications
| Feature | Details |
|---|---|
| Print Technology | Dye-sublimation / resin thermal transfer |
| Print Capabilities | Single or dual-sided |
| Print Resolution | 300 dots per inch (dpi) (300 X 600, 300 X 1200) |
| Monochrome printing | |
| Print Speed | Up to 880 single-sided cards per hour |
| Single-sided color ribbon – up to 225 cards per hour (cph) | |
| Double-sided color ribbon – up to 140 cards per hour (cph) | |
| Card Capacity | Input hopper – up to 125 cards |
| Output hopper – up to 25 cards (up to 100 optional) | |
| Reject hopper – up to 10 cards | |
| Card Sizes | Card input size: |
| Thickness – 0.010 inches to 0.040 inches (0.25mm – 1.016mm) | |
| Dimension – ID-1, CR-79, CR-80 | |
| Operating Environment | Temperature: 60°F to 95°F (15°C to 35°C) |
| Humidity: 20-80 % RH – non condensing | |
| Physical Dimensions | L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm |
| Weight | 12.1 lbs (5.49 kg); with options will vary |
| Connectivity | USB & Ethernet |
| Warranties | 36 Months |
| Web browser support for Instant ID as a Service | Chrome – Preferred |
| Edge/Internet Explorer | |
| Safari | |
| Operating system support for printer driver | Windows 11 |
| Windows 10 versions, 32- and 64-bit | |
| Windows 8.1, 32- or 64-bit | |
| Windows Server 2019 | |
| Windows Server 2016 | |
| Windows Server 2012, R2, 64-bit | |
| Optional Features and Supplies | Magnetic Stripe Encoding |
| Wi-Fi | |
| Smart Card Encoding | |
| Color Ribbons |
