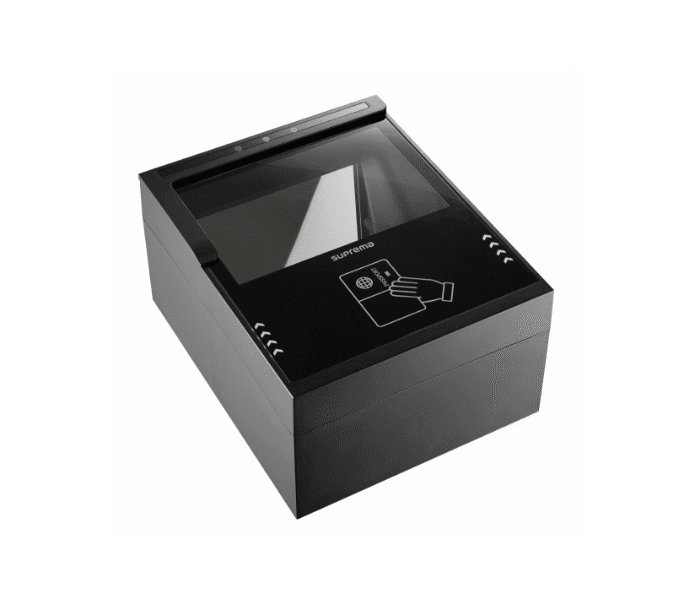

Suprema RealPass-V
Effortlessly and precisely scan a diverse range of identification documents with the Suprema RealPass-V RFID passport reader. Designed for seamless operation during immigration inspections, it automatically detects documents and features a tunable RFID antenna. This reader is capable of interpreting optical character recognition (OCR), photographs, barcodes, and smart chips in compliance with ICAO security protocols.
Description
Features
- Single-Step Reading Technique: Enables quick and efficient reading with a single step.
- Faster Lay-on Type Scanning: Facilitates rapid scanning using a lay-on type technique.
- ICAO Doc 9303 Compliance: Complies with International Civil Aviation Organization (ICAO) Document 9303 standards.
- UV & IR Illumination Imaging: Utilizes UV and IR illumination for imaging, allowing detection of hidden graphical patterns.
- MRZ Reading: Reads Machine Readable Zone (MRZ) of ICAO Document 9303 compliant travel documents and cards.
- Image Capture: Captures 420 dpi, 24-bit true-color image of MRZ.
- Photo Extraction: Extracts and saves photos or certain image areas from visual data page.
- Contactless Chip Reading: Reads ISO 14443 Type A/B contactless chip of ICAO standard e-passports.
- Security Protocol Support: Supports security protocols of e-passports.
- SDK Integration: Provides SDK for easy integration with any systems.
- Quality Checking Software: Offers quality checking software for e-passport issuing (optional).
- Barcode Reading: Reads 1D or 2D barcode (optional).
Specifications
| Feature | Details |
|---|---|
| Window Size (W x L) | 135 x 90 mm |
| Image Resolution | 420 dpi |
| Illuminations | White, IR, UV (Optional) |
| Scanning Speed | < 1.5s |
| RF Reader | ISO 14443 A/B Chip up to 848 kbps |
| PCSC Support | |
| Interface | USB 2.0 High-speed (Data & Power) |
| Hardware | Indicator: Multi-Color LED |
| Operating Temperature | 0°C ~ 40°C |
| Dimensions (W x L x H) | 210 x 246 x 129.5 mm (8.27″ x 9.69″ x 5.10″) |
| Weight | 3.7kg (8.15 lbs) |
| Power Supply | 100 ~ 240V DC Adaptor |
| Compatibility | Operating System: Windows |
| SDK | Full SDK including DLL with demo program in different languages |
| Certificate | KCC, CE, WHQL |
