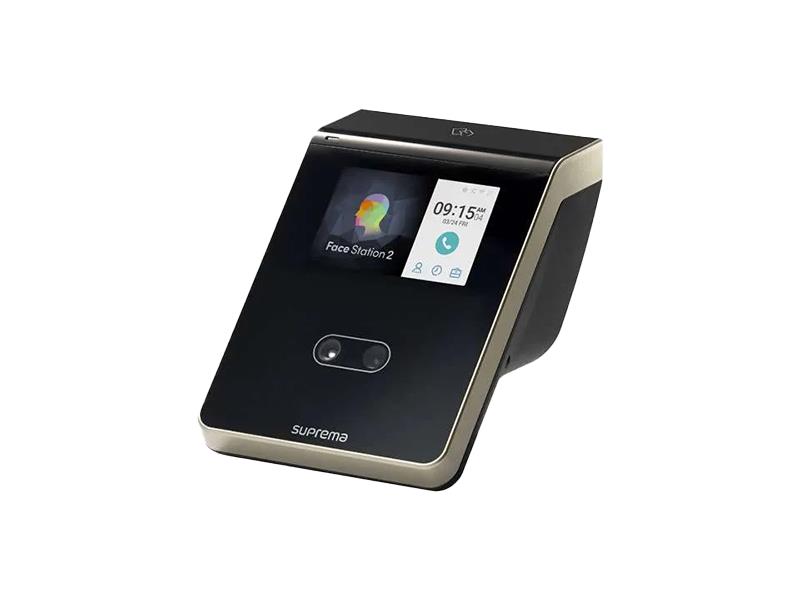

Suprema FaceStation 2
The FaceStation 2 by Suprema excels in speed, precision, and security, thanks to cutting-edge facial biometric innovations. Its advanced optical engineering enables reliable operation in lighting conditions up to 25,000 lux, providing confidence in any environment. With an ergonomic design, the FaceStation 2 offers exceptional performance and user experience. It’s versatile enough to cater to a wide range of applications, from large access control systems to small time attendance solutions.
Description
Features
Enhanced Security:
Live face detection utilizing IR-based image analysis to prevent spoofing by printed images and LCDs.
Enhanced security features integrated from Android 5.0 Lollipop.
High-quality Image log for comprehensive security monitoring.
Ultra Performance:
Matching Speed: 1:4,000 match/sec, with Group Matching at 1:5,000 match/sec.
User Capacity: Max 30,000 users (1:1), 4,000 users (1:N) for extensive scalability.
Multi RFID Card Reading:
LF(125kHz), HF(13.56MHz) dual-band support.
Reads all card types supported by HID multiCLASS, including EM/HID Prox/MIFARE/iCLASS/DESFire/FeliCa/NFC.
Highest Operating Illuminance:
Operating illuminance ranging from 0 lx to 25,000 lx, covering complete darkness to all indoor lighting conditions.
Ergonomics & User Convenience:
Extended height range: 145cm – 210cm for accommodating a diverse user base.
Tilt-type bracket designed for wheelchair users and children.
Android 5.0 Lollipop based intuitive GUI for seamless operation.
Improved face enrollment procedure for enhanced user experience.
Specification
| Feature | Specification |
| Biometric | Face |
| CPU | 1.4 GHz Quad Core |
| Memory | 8GB Flash + 1GB RAM |
| LCD type | 4” color TFT LCD |
| LCD resolution | 800 x 480 pixels |
| IR LED | 140 ea |
| Sound | 24 bit Voice DSP (echo cancellation) |
| Operating temperature | -20°C ~ 50°C |
| Operating humidity | 0% ~ 80%, non-condensing |
| Dimensions (W x H x D) | 141 x 164 x 125 mm |
| Weight | Device: 548g, Bracket: 74g (incl. washer and bolt) |
| Certificates | CE, FCC, KC, RoHS, REACH, WEEE, BT SIG |
| Power | DC 24V 2.5 A |
| Image dimension | 720 x 480 pixels |
| Live Face Detection | Supported |
| Max. User | 30,000 (1:1), 4,000(1:N) |
| Max. Log | 5,000,000 (text), 50,000 (image) |
| Wi-Fi | IEEE 802.11 b/g (FS2-AWB only) |
| Ethernet | Supported (10/100/1000 Mbps, auto MDI/MDI-X) |
| RS-485 | 1ch Host or Slave (Selectable) |
| Wiegand | 1ch In and 1ch Out |
| TTL input | 2 Inputs |
| Relay | 1 Relay |
| USB | USB 2.0 (Host) |
| Tamper | Supported |
| Video Phone | SIP-based VoIP (Video + Voice) |
| RF Options | FS2-D: 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2*, FeliCa, NFC <br> FS2-AWB: 125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2*, FeliCa, iCLASS SE/SR/Seos, NFC & 2.4GHz BLE |
| RF Read Range | MIFARE/DESFire/iCLASS: 50 mm <br> EM/HID Prox/FeliCa: 30 mm, BLE: 50 mm |
